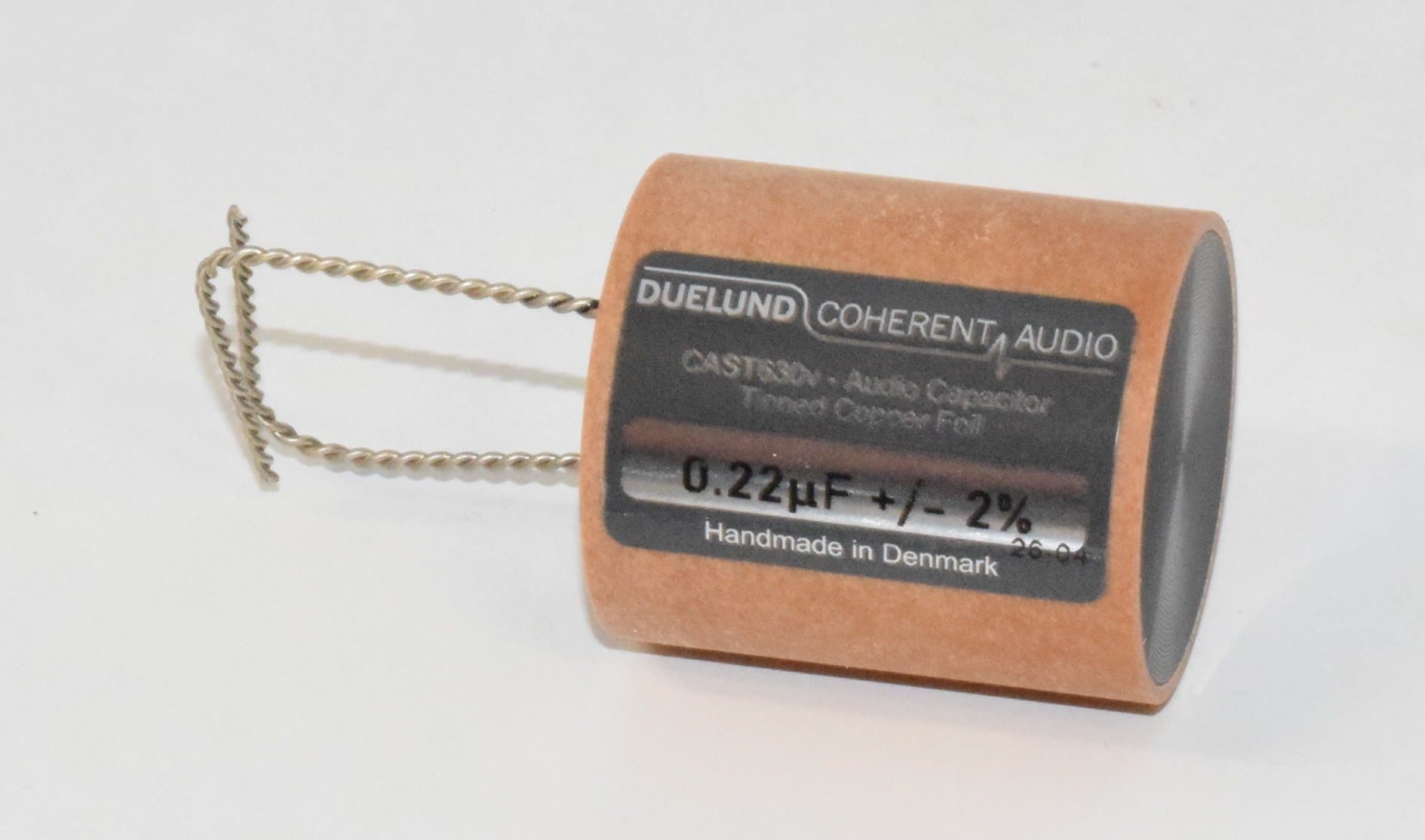

0.22uF CAST 630V Tinned Copper Foil Cu/Sn Audio Capacitor

Duelund CAST Tinned Copper Capacitor 630Vdc (Signal / Coupling) The flagship coupling capacitor in Duelund's signal-grade range, and widely regarded by serious tube amplifier builders as the finest paper-in-oil capacitor available for interstage and output coupling positions. The CAST 630V Tinned Copper combines Duelund's proprietary casting process with the celebrated tinned copper foil that has redefined what builders expect from a coupling capacitor in the signal path. Construction Tinned copper foil and high-density paper dielectric, wound in a cylindrical form and subjected to Duelund's proprietary WPIO (Wax-Paper Impregnated in Oil) treatment — multi-day high-pressure impregnation that yields exceptional mechanical damping. A ring of hard-pressed paper around the cast body further reinforces the damping and gives the CAST its distinctive cylindrical form factor. Lead-outs are Duelund's own DCA16GA tinned copper tone wire — the same cable that established Duelund's reputation among builders chasing vintage Western Electric tonality, used here as the integral termination of the capacitor itself. The outer lead is connected to the outer foil and should be oriented toward the lowest-impedance path to ground in your circuit. Sonic Character Tonal warmth and harmonic richness reminiscent of vintage Western Electric and golden-era studio gear, delivered against the exceptionally quiet and resonance-free background that defines the CAST series. Listeners report a strong sense of presence, dynamic life, and emotional directness — recorded music feels more vivid and lifelike, without the limitations of actual aged components. A burn-in period of 50–100 hours is recommended. Applications Designed for signal-path use in audio electronics — interstage and output coupling in valve amplifiers and preamplifiers, phono stages, and tube-output digital sources. The 630Vdc rating provides ample margin for B+ voltages encountered in directly heated triode and indirectly heated power tube circuits. Specifications

Construction: Cylindrical wound, proprietary WPIO casting process Conductor: Tinned copper foil Dielectric: High-density paper, wax-paper impregnated in oil (WPIO) Outer treatment: Hard-pressed paper damping ring Voltage rating: 630 VDC Tolerance: ±2% Lead-outs: Duelund DCA16GA tinned copper tone wire, axial Country of origin: Denmark (handmade)
