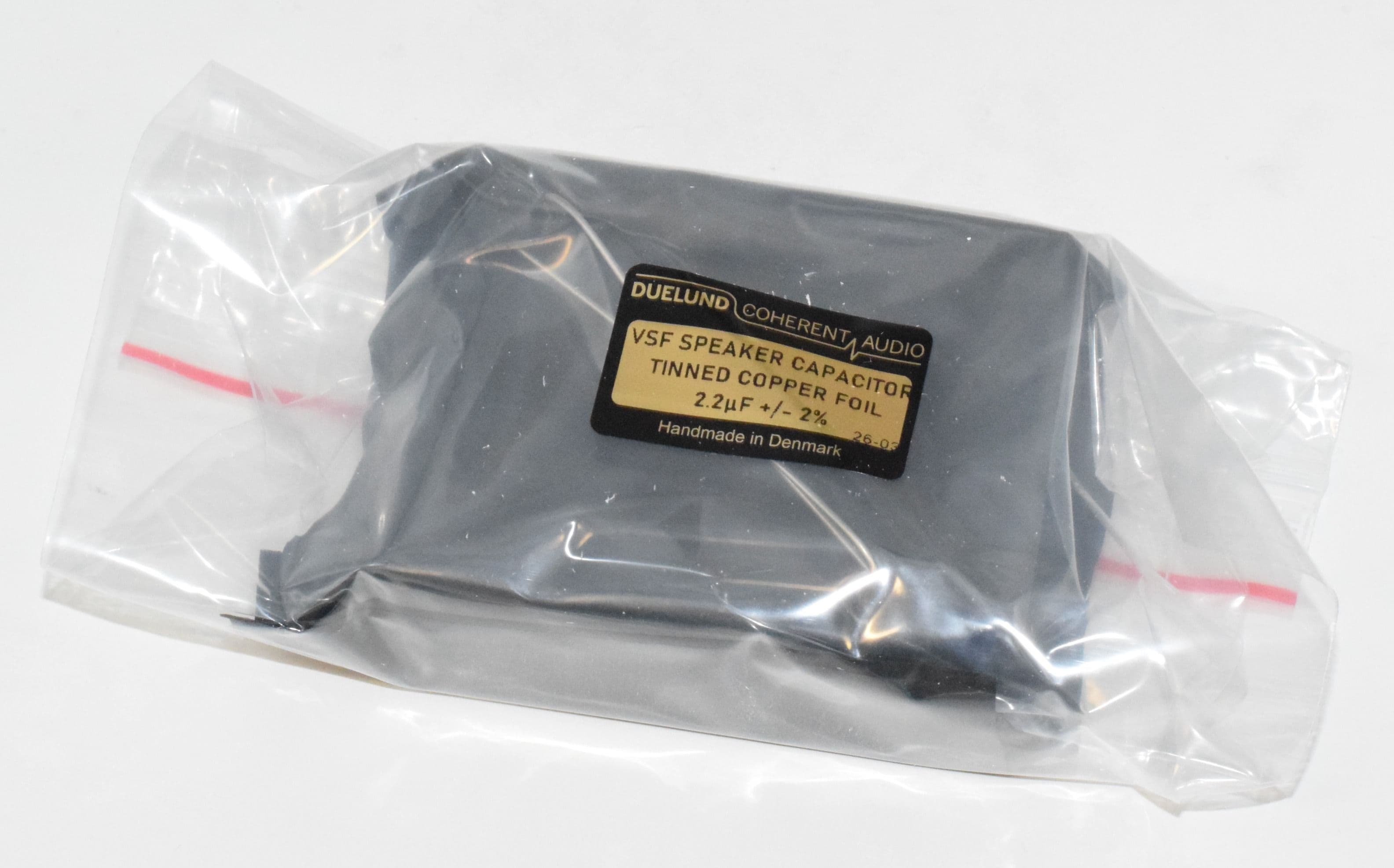

Duelund 2.2uf Black Series Tinned Copper Foil (Cu/Sn) VSF Speaker Capacitor

Duelund VSF Black Series Tinned Copper Capacitor (Loudspeaker)The VSF Black Cu-Sn brings Duelund's celebrated Virtual Stack Foil construction together with the same tinned copper conductor that has made Duelund's tinned copper wire a worldwide reference among high-end audio builders. The result is a capacitor with a unique sonic signature — the natural musicality and tonal weight of copper, refined by the slightly softer, more relaxed character that tin plating brings to the conductor surface.ConstructionThe capacitor is built around Duelund's flat-form Virtual Stack Foil topology, but in place of pure copper the conductor is high-purity copper foil with a tin coating applied to the surface. This is the same conductor philosophy behind the renowned Duelund tinned copper internal wiring, and it carries a comparable sonic footprint into the capacitor itself.The tinned copper foil is paired with high-density paper dielectric, vacuum-impregnated with pure mineral wax, and finished with the Black Series outer damping treatment that distinguishes the current generation from the original VSF range. The flat geometry yields very low parasitic inductance and a mechanically rigid form, free of the internal microphony that plagues conventional cylindrical windings.Lead-outs are 1mm tinned copper. The outer lead is connected to the outer foil and should be oriented toward the lowest-impedance path to ground in your crossover.Sonic CharacterThe Cu-Sn occupies a sonic territory all its own within the Duelund VSF Black range. Where the pure copper version is celebrated for its tonal density and uncoloured presentation, and the Cu-Ag hybrid for its added top-end air, the tinned copper sits closer to a vintage voicing — slightly warmer through the midrange, with a smooth, unforced top end that many listeners describe as more relaxed and less analytical. It is often the preferred choice for systems that lean bright or forward, or for builders who want to evoke the tonal balance of classic point-to-point wired equipment from the golden era of valve audio.The Black Series damping treatment refines this character further, improving low-level detail and decay information without disturbing the fundamental tonal balance.A burn-in period of 50–100 hours is recommended.ApplicationsParticularly well suited to systems where a slightly warmer, more forgiving top end is desired — including horn-loaded loudspeakers, high-efficiency single-driver designs, and crossovers paired with valve amplification where tonal continuity with the rest of the signal chain matters. Equally at home in series or parallel positions in tweeter and midrange networks. As with all VSF capacitors, multiple values may be paralleled with minimal performance penalty thanks to the low-inductance flat geometry.Specifications Construction: Virtual Stack Foil (VSF), Black Series damped Conductor: Tinned copper foil Dielectric: High-density paper, wax-impregnated Voltage rating: 100 VAC / 200 VDC Tolerance: ±2% Lead-outs: 1.0 mm tinned copper Standard values: 0.1 µF – 10 µF (other values to order) Country of origin: Denmark
